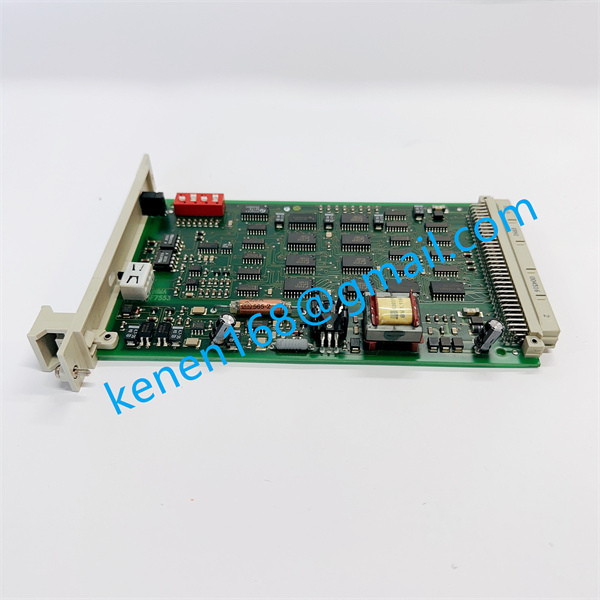

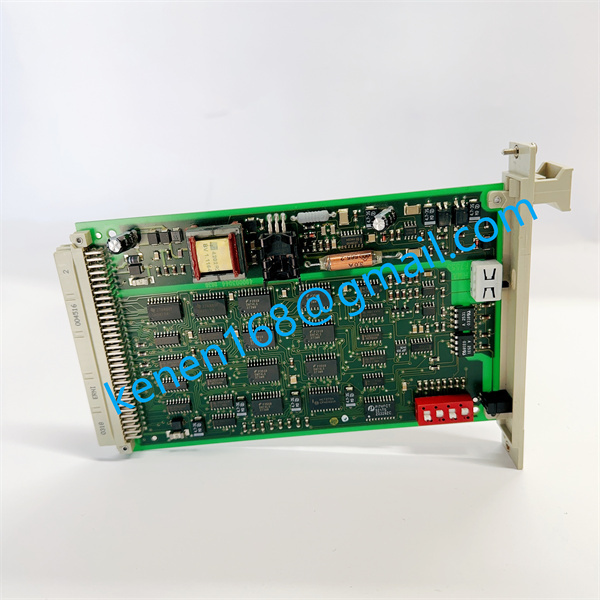

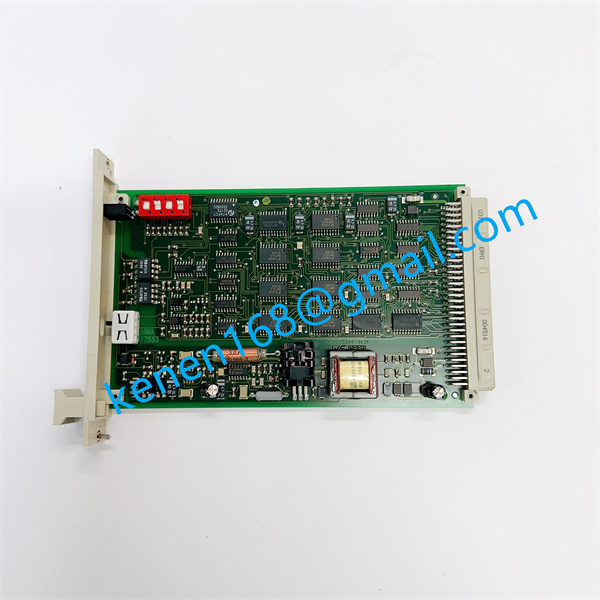

HIMA Z7126 is an industrial automation product launched by the German company HIMA, available in various types includingcommunication modules,control units,cable plugs, andpower adapters.
HIMA Z7126 is an industrial automation product launched by the German company HIMA, available in various types includingcommunication modules,control units,cable plugs, andpower adapters. The following is a brief introduction to its main products:
Z7126 Communication Module
It is a customized communication module designed specifically for industrial automation applications. It has a working voltage of 220V and a maximum output frequency of 30kHz. Supporting multiple communication protocols, it can be seamlessly integrated into existing systems to provide reliable and efficient data transmission. Its robust design enables operation in harsh environments, and it complies with international safety and quality standards such as CE, UL, and IECEx.
Z7126 Control Unit
Belonging to the H41/51q system, it features Quadruple Modular Redundancy (QMR) to achieve high availability. Certified with SIL3 safety rating, it supports IEC 61508 and IEC 62304 standards. Equipped with a wide range of I/O interfaces, it can be expanded up to 128 channels and supports Ethernet and CANopen communication. As a high-performance and reliable CCU (Control and Communication Unit), it is suitable for safety-critical applications.
Z7126 Cable Plug
Used to connect HIMA safety devices to field equipment, it is a 17-pin circular connector constructed from nickel-plated brass. With an IP67 protection rating, it can be used in hazardous areas to ensure the safety and reliability of connections. It is an integral part of the Safety Instrumented System (SIS).
Z7126 Power Adapter
It is a high-power, compact, and lightweight AC/DC power adapter. It has an input voltage of 100-240V AC, an output voltage of 12V DC, an output current of 7A, and an output power of 84W. Equipped with overcurrent, overvoltage, and short-circuit protection functions, it is suitable for various industrial, medical, and scientific equipment that require stable and reliable power supply.
interface *Output method: rear output *Fast Ethernet: 3 slots, each slot supports 8 ports, with optional optical and electrical options *Gigabit Ethernet: Provides 4 1000Base SFP slots *CONSOLE port: RS232 (RJ45) *Alarm port: 5.08mm spacing 3-pin Phoenix wiring terminal, 250VAC/220VDC 2 A cable *Twisted pair cable: 100m *Multimode fiber: 1310nm, 2km (100Mbps); 1310nm, 500m (gigabit) *Single mode fiber: 1310nm, 0-40km; 1550nm, 0-80km source *Input voltage: 110-220VDC/VAC, redundant input *Connection terminal: 5.08mm spacing 5-pin Phoenix wiring terminal *Power:<40W mechanical properties *Case: Aluminum model with fanless design *Protection level: IP30 *Installation method: 19 inch 1U rack type *Shell size: 440 mm * 44.5 mm * 370 mm (W * H * D), as shown in the attached image *Impact, vibration, and drop: meet the requirements of IEC61850-3 5.5 CM level *Weight: approximately 4.3kg
