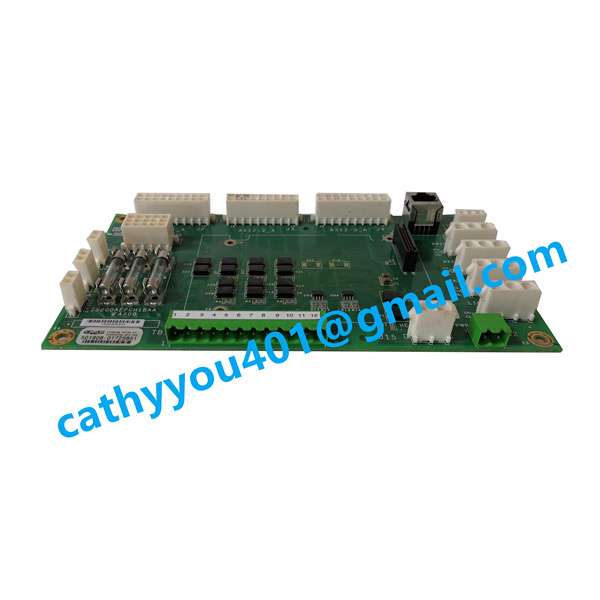

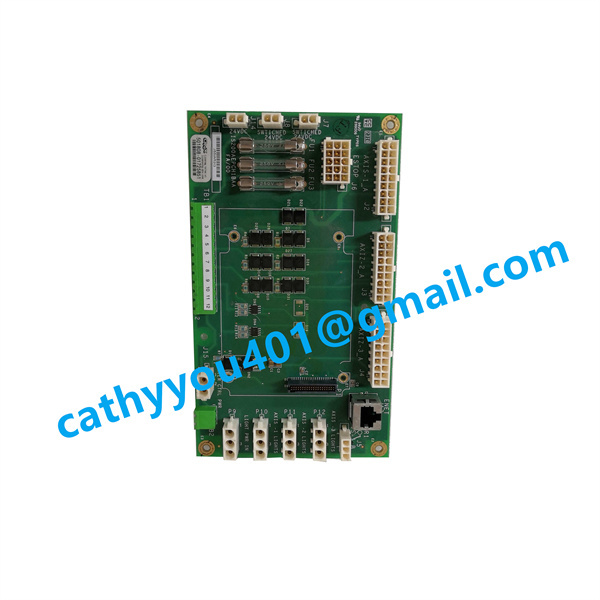

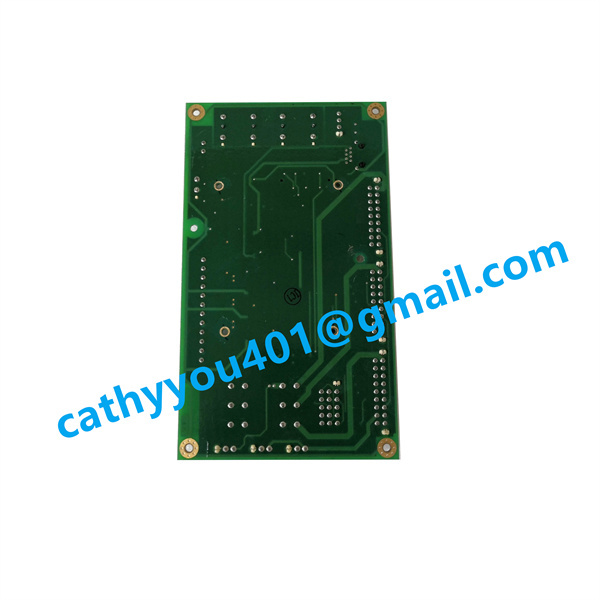

IS200AEADH4ADA GE Input Terminal Board NEW IN STOCK

IS200AEADH4ADA Product Overview (GE)

1.Brand & Model

Brand: GE (General Electric)

Product Line: Speedtronic Mark VIe Distributed Control System (DCS)

Model Number: IS200AEADH4ADA

Product Type: Analog Input/Output (I/O) Module

2.Core Specifications

Function: Dual-channel analog signal processing (combination of input and output)

Signal Compatibility:

Input: 4-20 mA DC, 0-10 V DC (configurable)

Output: 4-20 mA DC, 0-10 V DC (configurable)

Resolution: 16-bit (analog-to-digital/digital-to-analog conversion)

Accuracy: ±0.1% of full scale (FS) at 25°C (77°F)

Update Rate: 10 ms per channel (configurable via software)

3.Physical Dimensions

Length: 125 mm (4.92 inches)

Width: 85 mm (3.35 inches)

Height: 32 mm (1.26 inches)

Mounting Type: DIN rail (35 mm standard) or backplane mounting (compatible with Mark VIe chassis)

4.Weight

Net Weight: 180 g (0.40 lbs)

Gross Weight (with packaging): 300 g (0.66 lbs)

5.Operating Temperature Range

Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Storage Temperature: -55°C to 85°C (-67°F to 185°F)

Humidity: 5% to 95% RH (non-condensing)

6.Input Parameters

Input Channels: 2 independent channels

Input Impedance:

Current input: ≤250 Ω

Voltage input: ≥100 kΩ

Overload Protection: ±30 V DC (voltage input), ±50 mA DC (current input)

Isolation: 250 V AC (channel-to-channel, channel-to-ground)

7.Output Parameters

Output Channels: 2 independent channels

Output Load Capacity:

Current output: Max 500 Ω (4-20 mA)

Voltage output: Min 1 kΩ (0-10 V)

Output Stability: ±0.05% FS/°C (temperature drift)

Short-Circuit Protection: Automatic current limiting (resets when fault is cleared)

8.Power Requirements

Supply Voltage: 24 V DC ±10%

Power Consumption: Max 2.5 W (typical 1.8 W)

Power Supply Isolation: 1 kV AC (power-to-signal)

9.Additional Technical Parameters

Communication Protocol: GE Proprietary Serial Bus (compatible with Mark VIe backplane)

Diagnostic Features: Built-in self-test (BIST), channel-level fault detection (overrange, underrange, short circuit), LED status indicators

Certifications: UL 61010-1, CSA C22.2 No. 61010-1, IEC 61010-1 (safety); CE (EMC compliance)

MTBF (Mean Time Between Failures): 1,200,000 hours (per MIL-HDBK-217F)

Compatibility: Fully integrated with GE Mark VIe DCS software (ToolboxST, CIMPLICITY)

Operating Altitude: Up to 2,000 m (6,562 ft) without derating; 2,000-4,000 m (6,562-13,123 ft) with 3% derating per 300 m

interface
*Output method: rear output
*Fast Ethernet: 3 slots, each slot supports 8 ports, with optional optical and electrical options
*Gigabit Ethernet: Provides 4 1000Base SFP slots
*CONSOLE port: RS232 (RJ45)
*Alarm port: 5.08mm spacing 3-pin Phoenix wiring terminal, 250VAC/220VDC 2 A
cable
*Twisted pair cable: 100m
*Multimode fiber: 1310nm, 2km (100Mbps); 1310nm, 500m (gigabit)
*Single mode fiber: 1310nm, 0-40km; 1550nm, 0-80km
source
*Input voltage: 110-220VDC/VAC, redundant input
*Connection terminal: 5.08mm spacing 5-pin Phoenix wiring terminal
*Power:<40W
mechanical properties
*Case: Aluminum model with fanless design
*Protection level: IP30
*Installation method: 19 inch 1U rack type
*Shell size: 440 mm * 44.5 mm * 370 mm (W * H * D), as shown in the attached image
*Impact, vibration, and drop: meet the requirements of IEC61850-3 5.5 CM level
*Weight: approximately 4.3kg

*10 Mbps forwarding speed: 14881pps
*100Mbps forwarding speed: 148810pps
*Transmission method: storage and forwarding
*System exchange bandwidth: 1.6Gbps
*Cache size: 1Mbits
*MAC address table: 2K
