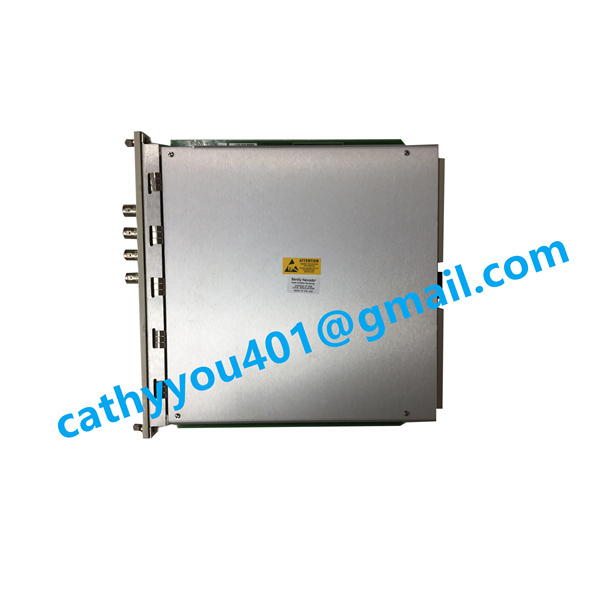

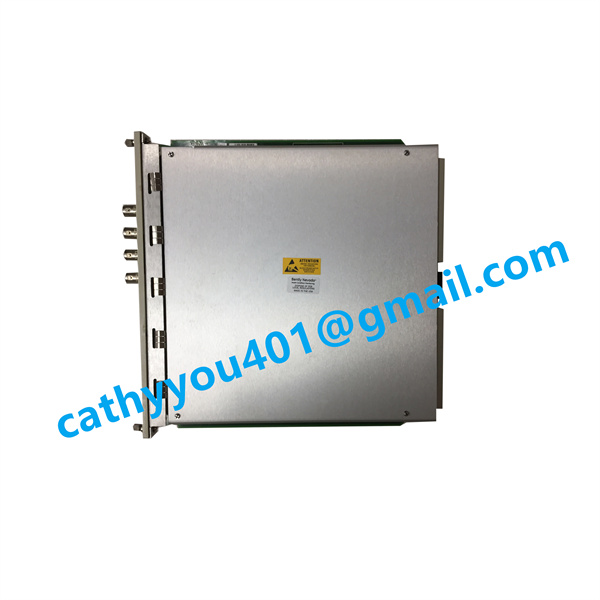

Bently Nevada 3500/50-01-00-01 Tachometer Module

Bently Nevada 3500/50-01-00-01 Product Profile & Technical Specifications
Brand: Bently Nevada
Model: 3500/50-01-00-01
Product Name: Tachometer Module for Rotating Machinery Monitoring
Basic & Physical Parameters
Dimensions: 241.3 mm × 24.4 mm × 99.1 mm (full-height slot for 3500 chassis)
Weight: 0.20 kg (0.44 lb)
Origin: United States
Customs HS Code: 8538900000 (industrial control equipment components)
Environmental Specifications
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Humidity: 5%–95% RH, non-condensing
Ingress Protection: IP20 (module level)

Input Parameters
Input Type: Accepts signals from proximity probes or magnetic pickups
Input Signal Range: +10.0 V to -24.0 V (internally limited for over-range protection)
Input Impedance: 20 kΩ (standard), 40 kΩ (TMR configuration), 7.15 kΩ (internal barrier version)
Maximum Full-Scale RPM: 99,999 rpm
Maximum Input Frequency: 20 kHz
Minimum Input Frequency: 0.0167 Hz (1 rpm for proximity transducers, 1 event per revolution); 3.3 Hz (passive magnetic pickups)
RPM Accuracy: ±0.1 rpm (<100 rpm); ±1 rpm (100–10,000 rpm); ±0.01% (>10,000 rpm)
RPM/Min Accuracy: ±20 rpm/min
Output & System Parameters
Power Supply: 24 V DC (chassis backplane supply)
Power Consumption: 5.8 W (typical)
Output Interface: Transmits speed, acceleration, direction data and alarm signals to the 3500 backplane; supports peak hold for maximum speed/reverse speed recording
System Communication: Integrates with 3500 chassis communication modules; compatible with industrial protocols via backplane (Modbus, RS485, etc., dependent on chassis configuration)
Key Features
- 2-channel tachometer module for simultaneous monitoring of shaft speed, rotor acceleration and rotor direction
- User-configurable operating modes: speed monitoring with alarm setpoints, zero-speed indication, acceleration alarm, or reverse direction detection
- Onboard peak hold function stores maximum speed/reverse speed values for machine performance analysis
- Capable of providing keyphasor signals to other 3500 monitors, eliminating the need for a separate keyphasor module
- Built-in diagnostic circuitry and self-test capabilities for rapid fault detection and reduced maintenance downtime
- Hot-swappable design for easy replacement without full system shutdown, ideal for continuous-process industries
- Rugged industrial construction with wide operating temperature range and high electromagnetic interference (EMI) resistance, suitable for power generation, oil & gas, chemical processing, pulp & paper, and marine applications
- Compliant with international industrial standards for reliability and safety in critical machinery protection
