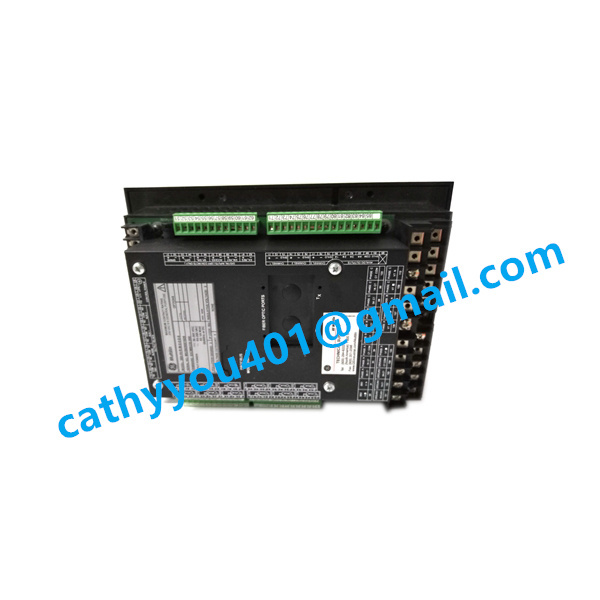

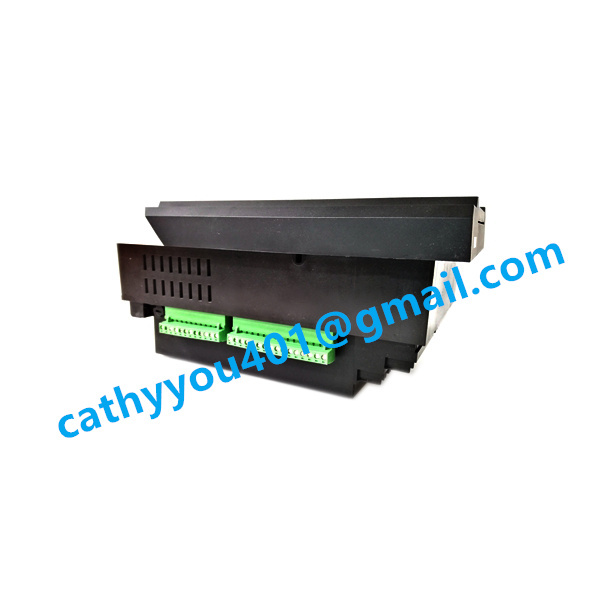

369-HI-R-M-0-0-H-E which is a core functional module in GE's industrial power protection system. It integrates high-precision detection chips, intelligent control circuits and industrial-grade protection components, and is specially designed for high-reliability protection and real-time monitoring of electrical equipment in industrial and power scenarios.
Introduction and Technical Parameters of 369-HI-R-M-0-0-H-E (GE) 369-HI-R-M-0-0-H-E is a high-performance protective relay module independently developed and produced by GE (General Electric), which is mainly applied to GE's industrial control and power protection systems. As a key component in power system protection and control, it is mainly responsible for real-time monitoring of electrical equipment operating parameters, rapid identification of fault signals (such as overcurrent, overvoltage, undervoltage and phase failure), and timely triggering of protective actions to avoid equipment damage and ensure the safe, stable and continuous operation of the entire power system. It is widely used in power plants, substations, industrial workshops and other fields with high requirements for electrical safety. The detailed introduction and technical parameters are as follows: 1. Basic Information 1.1 Brand: GE (General Electric) 1.2 Model: 369-HI-R-M-0-0-H-E 1.3 Product Type: Protective Relay Module, which is a core functional module in GE's industrial power protection system. It integrates high-precision detection chips, intelligent control circuits and industrial-grade protection components, and is specially designed for high-reliability protection and real-time monitoring of electrical equipment in industrial and power scenarios. 2. Technical Parameters 2.1 Protection Function: It supports multiple protection types, including overcurrent protection, overvoltage protection, undervoltage protection, phase failure protection, overload protection and short-circuit protection. The protection threshold is configurable, and the response time is ≤50ms, which can quickly respond to equipment faults and minimize loss. 2.2 Dimensions: 220mm × 150mm × 45mm (length × width × height), adopting the standard industrial module size of GE series, which is convenient for installation and assembly with other control system components, and compatible with standard DIN mounting rails, reducing the difficulty of on-site installation and layout. 2.3 Weight: About 1.1kg (net weight, excluding connecting wires, connectors and other accessories). The lightweight and compact design does not increase additional load for the installation of the control cabinet, and is convenient for transportation, installation and on-site maintenance. 2.4 Operating Environment: The operating temperature range is -40℃ to +70℃, the relative humidity is 5% - 95% (non-condensing), the protection grade is IP65, and it has strong anti-electromagnetic interference (EMI), dust-proof, moisture-proof and anti-vibration capabilities, which can adapt to the harsh operating environment of industrial fields and power stations. 2.5 Power Supply Requirements: Working voltage: 24VDC / 110VDC (dual voltage optional), stable voltage range: 18VDC - 130VDC, rated working current: 1.0A, power consumption: ≤12W. It is equipped with over-voltage, under-voltage and reverse connection protection functions to avoid module damage caused by power supply abnormalities and ensure stable operation. 2.6 Communication Interface: Equipped with RS-485, Ethernet (RJ45) communication interfaces, compatible with GE's proprietary communication protocol, Modbus RTU/TCP and other standard industrial communication protocols. It supports bidirectional data transmission and communication with upper computers, monitoring systems and other control modules, and the communiation baud rate can be configured between 9600bps - 115200bps. 2.7 Working Life: The average trouble-free working time (MTBF) is not less than 100,000 hours, which meets the long-term stable operation requirements of industrial power protection equipment, and reduces the frequency of maintenance and replacement. 3. Product Features 3.1 High Reliability and Fast Response: Adopting advanced fault detection algorithm and high-speed processing chip, it can accurately monitor the operating parameters of electrical equipment in real time, quickly identify fault signals, and trigger protective actions within milliseconds, effectively avoiding equipment damage caused by faults. 3.2 Strong Compatibility: It is perfectly compatible with GE's various industrial control and power protection systems, and can be directly connected and used with other modules of the same series without additional adaptation and debugging, which reduces the difficulty of system upgrading, transformation and maintenance. 3.3 Flexible Configuration: The protection threshold, response time and other parameters of the module can be flexibly configured according to actual application scenarios and user needs, which is suitable for different types of electrical equipment and working conditions, and has strong applicability. 3.4 Easy Installation and Maintenance: Adopting modular design and plug-in installation method, it is convenient for on-site installation, disassembly and maintenance. The module is equipped with power supply, operation, fault and other indicator lights, which is convenient for staff to quickly judge the working status of the module and locate faults, improving maintenance efficiency. 3.5 Intelligent Monitoring and Feedback: It supports real-time monitoring and data feedback of equipment operating parameters and module working status, which is convenient for staff to grasp the operation information in time. At the same time, it has a fault memory function, which can record fault information for subsequent fault analysis and processing.
interface *Output method: rear output *Fast Ethernet: 3 slots, each slot supports 8 ports, with optional optical and electrical options *Gigabit Ethernet: Provides 4 1000Base SFP slots *CONSOLE port: RS232 (RJ45) *Alarm port: 5.08mm spacing 3-pin Phoenix wiring terminal, 250VAC/220VDC 2 A cable *Twisted pair cable: 100m *Multimode fiber: 1310nm, 2km (100Mbps); 1310nm, 500m (gigabit) *Single mode fiber: 1310nm, 0-40km; 1550nm, 0-80km source *Input voltage: 110-220VDC/VAC, redundant input *Connection terminal: 5.08mm spacing 5-pin Phoenix wiring terminal *Power:<40W mechanical properties *Case: Aluminum model with fanless design *Protection level: IP30 *Installation method: 19 inch 1U rack type *Shell size: 440 mm * 44.5 mm * 370 mm (W * H * D), as shown in the attached image *Impact, vibration, and drop: meet the requirements of IEC61850-3 5.5 CM level *Weight: approximately 4.3kg
