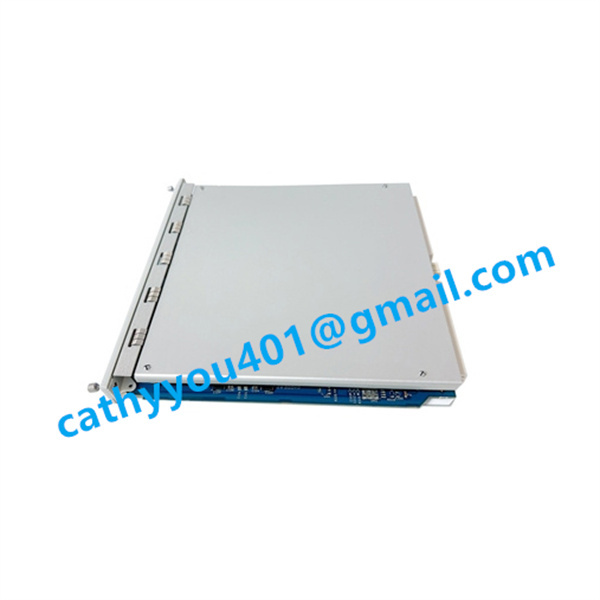

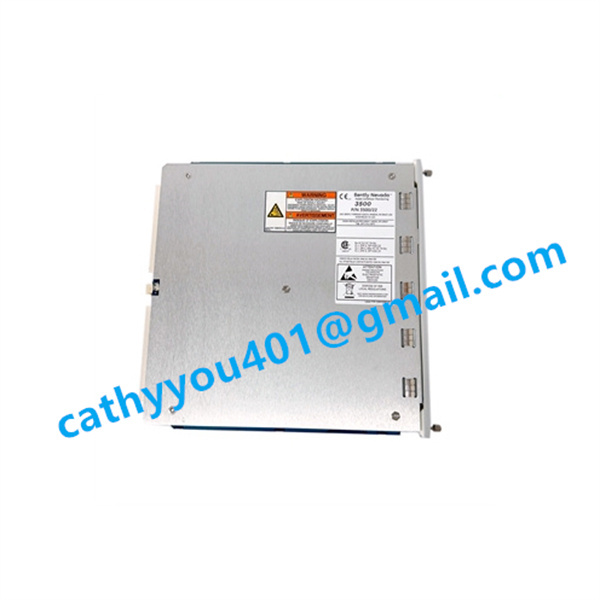

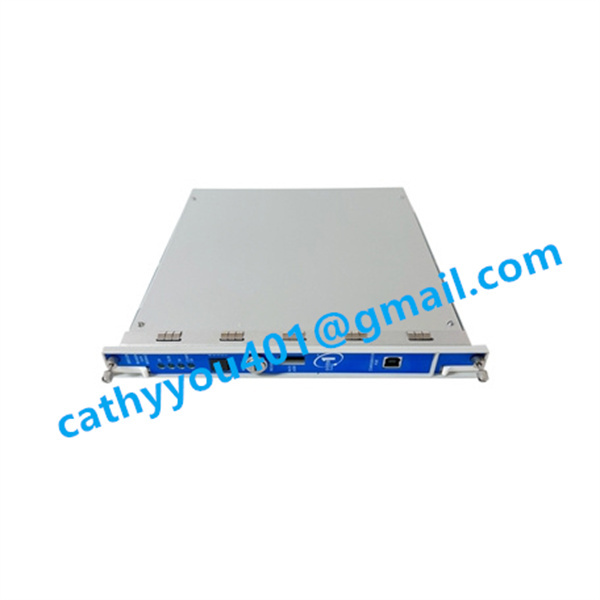

3500/22M 288055-01 Bently Nevada new Transient Data Interface Module
The Bently Nevada™ 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
10Base-T/100Base-TX I/O: 10Base-T or 100Base-TX Ethernet (autosensing)
100Base-FX I/O: 100Base-FX Fiber-Optic Ethernet
3500/22M 288055-01 Bently Nevada Outputs
Front Panel LEDs
OK LED: Indicates when the 3500/22M is operating properly.
TX/RX LED: Indicates when the 3500/22M is communicating with other modules in the rack.
TM LED: Indicates when the 3500 rack is in Trip Multiply mode.
CONFIG OK LED: Indicates that the 3500 rack has a valid configuration.
I/O Module OK Relay
Function: Indicates normal operation of the 3500 rack or detects faults within the rack. Users can select either an “OPEN” or “CLOSED” contact to annunciate a NOT OK condition. This relay operates as “Normally Energized”.
Ratings:
Standard OK Relay: 5A @ 24 Vdc/120 Vac, 120 Watts/600 VA Switched Power (maximum)
OK Relay with gold-plated contacts: Down to 1 mA @ 1 Vdc (minimum)
Arc Protection: Arc suppressors are provided.
3500/22M 288055-01 Bently Nevada Controls
Front Panel
Rack Reset Button: Clears latched alarms and Timed OK Channel Defeat in the rack. Performs the same function as the “Rack Reset” contact on the I/O module.
Address Switch: Used to set the rack address (127 possible addresses).
Configuration Keylock:
Places the 3500 rack in either “RUN” mode or “PROGRAM” mode.
RUN Mode: Enables normal rack operation and locks out configuration changes.
PROGRAM Mode: Enables normal rack operation and allows local or remote rack configuration.
The key can be removed in either position, keeping the switch locked in RUN or PROGRAM.
Locking in RUN position restricts unauthorized reconfiguration; locking in PROGRAM position allows remote reconfiguration at any time.
