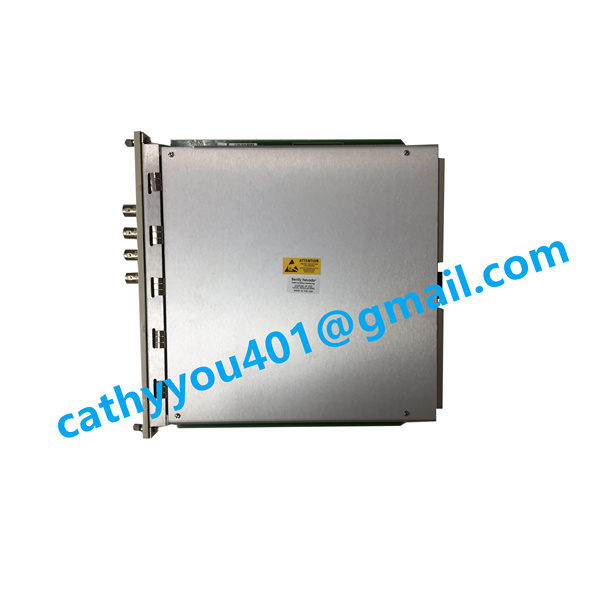

3500/15 106M1081-01 Bently Nevada Input Module

Bently Nevada 3500/15 106M1081-01 Technical Specifications
Brand: Bently Nevada (Baker Hughes/GE)
Model: 3500/15
Order Number: 106M1081-01
Product Name: 3500/15 Universal AC Power Input Module
Country of Origin: USA
HS Code: 8537101190
Dimensions (W×H×D): 51 × 121 × 254 mm (2.0 × 4.75 × 10.0 in)
Weight: 0.9 kg (2.0 lb)

Input:Voltage: 85–264 VAC RMS (universal)
Frequency: 47–63 Hz
Max Current: 2.8 A RMS
Peak Voltage: 120–373 VAC
Output (to power supply):Isolated, regulated DC bus for 3500 rack
Max Power: 120 W (supports full rack load)
Redundancy: 1+1 hot‑swap, no downtime on replacement
Environmental Ratings:Operating Temp: 0 °C to +55 °C
Storage Temp: –30 °C to +65 °C
Humidity: 5%–95% RH (non‑condensing)
Protection: IP20 (front panel)
Key Features:Half‑height, left‑slot mounting in 3500 rack
“Supply OK” LED status indicator
Overvoltage, overcurrent, short‑circuit protection

interface
*Output method: rear output
*Fast Ethernet: 3 slots, each slot supports 8 ports, with optional optical and electrical options
*Gigabit Ethernet: Provides 4 1000Base SFP slots
*CONSOLE port: RS232 (RJ45)
*Alarm port: 5.08mm spacing 3-pin Phoenix wiring terminal, 250VAC/220VDC 2 A
cable
*Twisted pair cable: 100m
*Multimode fiber: 1310nm, 2km (100Mbps); 1310nm, 500m (gigabit)
*Single mode fiber: 1310nm, 0-40km; 1550nm, 0-80km
source
*Input voltage: 110-220VDC/VAC, redundant input
*Connection terminal: 5.08mm spacing 5-pin Phoenix wiring terminal
*Power:<40W
mechanical properties
*Case: Aluminum model with fanless design
*Protection level: IP30
*Installation method: 19 inch 1U rack type
*Shell size: 440 mm * 44.5 mm * 370 mm (W * H * D), as shown in the attached image
*Impact, vibration, and drop: meet the requirements of IEC61850-3 5.5 CM level
*Weight: approximately 4.3kg

*10 Mbps forwarding speed: 14881pps
*100Mbps forwarding speed: 148810pps
*Transmission method: storage and forwarding
*System exchange bandwidth: 1.6Gbps
*Cache size: 1Mbits
*MAC address table: 2K
